TECHNICAL PARAMETERS

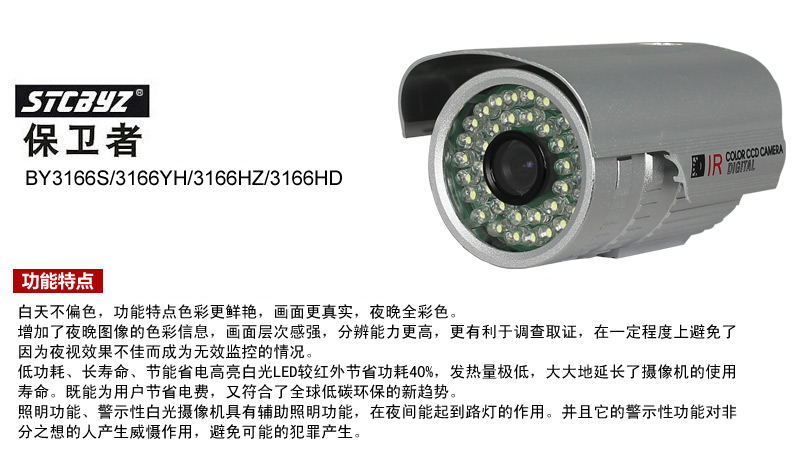

| Model Number | BY3166S | BY3166YH | BY3166HZ | BY3166HD |
| CCD Type | SONY 1/3" CCD | |||
| Pixels |
PAL:512H×582V NTSC:512×492V |
PAL:752H×582V NTSC:768×494V |
PAL:752H×582V NTSC:768×494V |
PAL:960H×582V NTSC:967×494V |
| Scanning System | PAL/NTSC | |||
| Horizontal Resolation | 420TVL | 480TVL | 650TVL | 700TVL |
| Minimun Illumination | OLux (IR ON) | |||
| S/N Ratio | ≥48bB | |||
| Video Output | 1.0VP-P/75Ω | |||
| AGC | AUTO | |||
| White Balance | AUTO | |||
| Backligth Compensation | AUTO | |||
| Exposure Mode | EE | |||
| Elecctronic Shutter | 1/50(1/60)~1/100000 sec | |||
| Gamma Correction | 0.45 | |||
| IR View Distance | 50m | |||
| Lens | 4mm、6mm、8mm、12mm、16mm (Optional) | |||
| Size | 210L×90W×90H(mm) | |||
| Power Supply | DC12V/2A | |||
| Gperation Temperature | -10℃ ~ 50℃ | |||
