TECHNICAL PARAMETERS

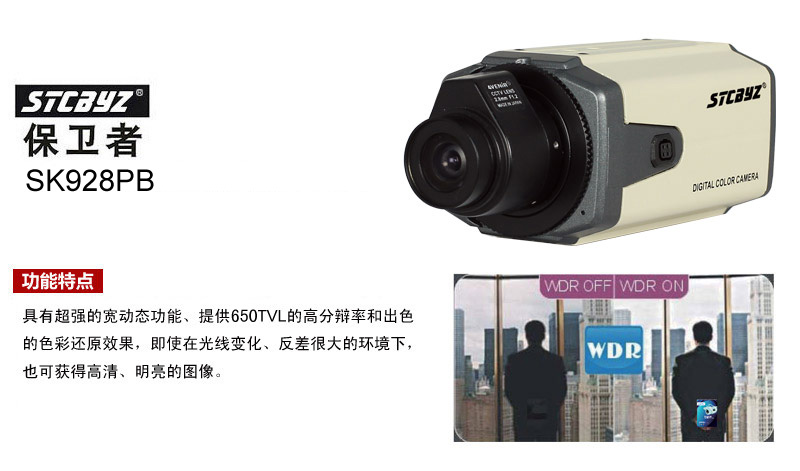

| Model Number | SK928PB | ||||
| CCD Type | SONY 1/3" CCD | ||||
| Pixels |
PAL:512H×582V NTSC:512×492V |
PAL:752H×582V NTSC:768×494V |
PAL:752H×582V NTSC:768×494V |
PAL:752H×582V NTSC:768×494V |
PAL:960H×582V NTSC:967×494V |
| Scanning System | PAL/NTSC | ||||
| Horizontal Resolation | 650TVL | ||||
| Minimun Illumination | 0.5Lux | ||||
| S/N Ratio | ≥48bB | ||||
| Exposure Mode | EE | ||||
| Elecctronic Shutter | 1/50(1/60)~1/100000 sec | ||||
| Lens | 4mm、6mm、8mm、12mm、16mm (Optional) | ||||
| Size | 120L×63W×63H(mm) | ||||
| Power Supply | DC12V/2A | ||||
| Gperation Temperature | -10℃ ~ 50℃ | ||||
